About Visual Signal
matfor logo
Visual Signal is a signal processing software developed to provide time-frequency analysis solutions in an intuitive way.The design eliminates the complicated ways of writing a program to produce visual process control components, and instead provides a variety of visual process control components to be utilized. This gives users the ability to create a presentation of their own ideas for analysis without the limitation of needing to be able to code it. AnCAD has ensured that the design of Visual Signal is fast,simple, and effective for users in the field of signal analysis and that it provides a simple yet powerful tool for signal analysis and comparisons.


Filter Module

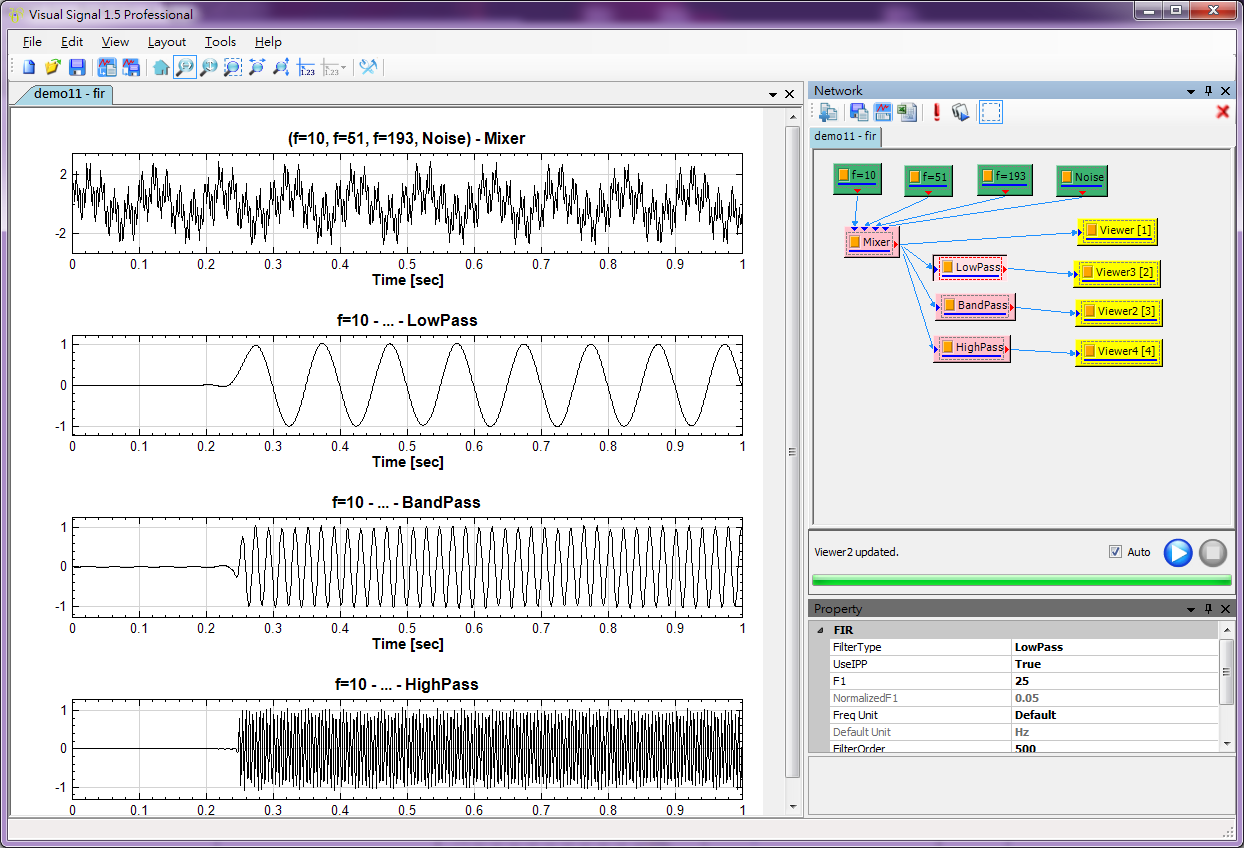

FIR Demo
Finite Impulse Response Filter is the fundamental filter prototype in digital     signal processing. It can remove a high-frequency, low-frequency, or a given     band frequency component.


Iteractive Gaussian Demo
Runs an Iterative Gaussian filter whose impulse response is a Gaussian     function. Gaussian filters have the properties of having no overshootto a     step function input while minimizing the rise and fall time.

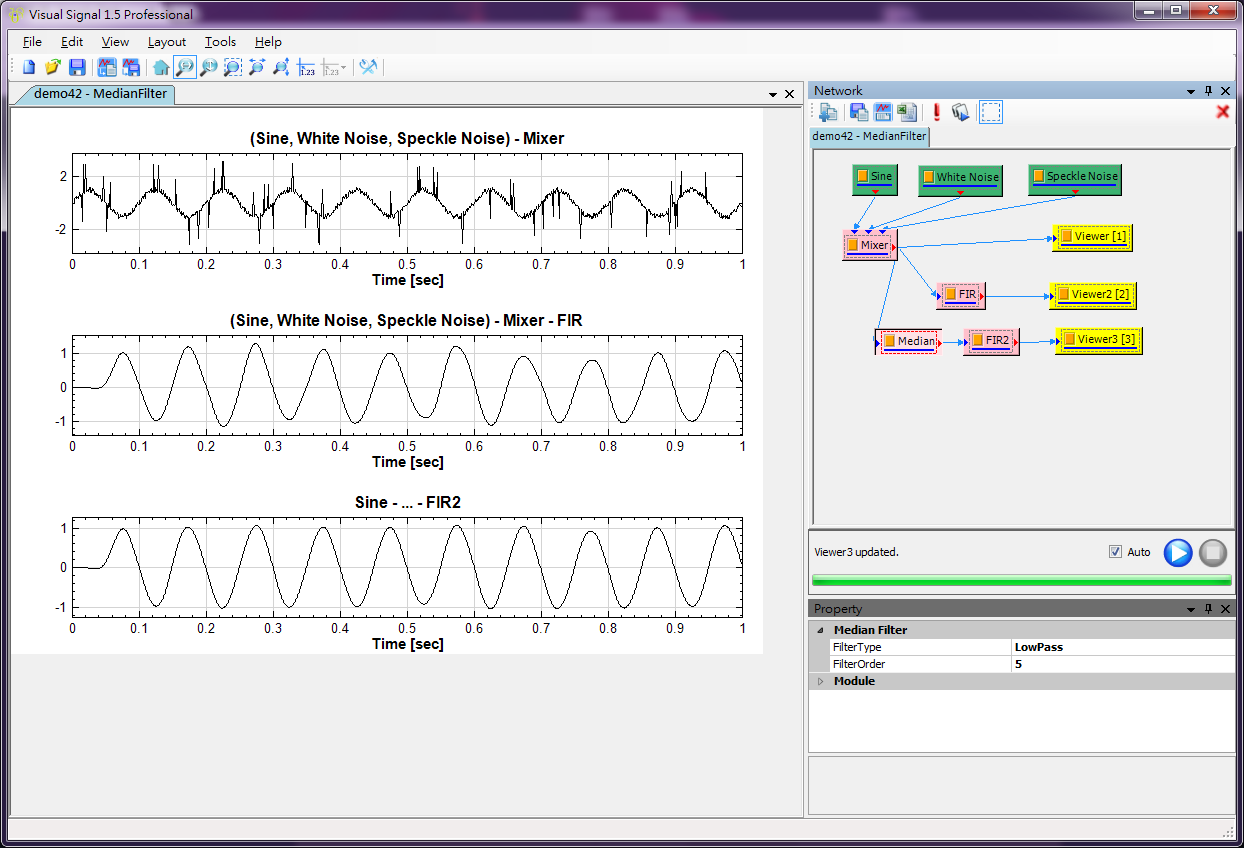

Median Filter Demo
A Median Filter is a one-dimensional non-linear filter, used to calculate the     median in the rango of filtering (Filter Order) and can reduce speckle noise     significantly while retaining good edge detection.

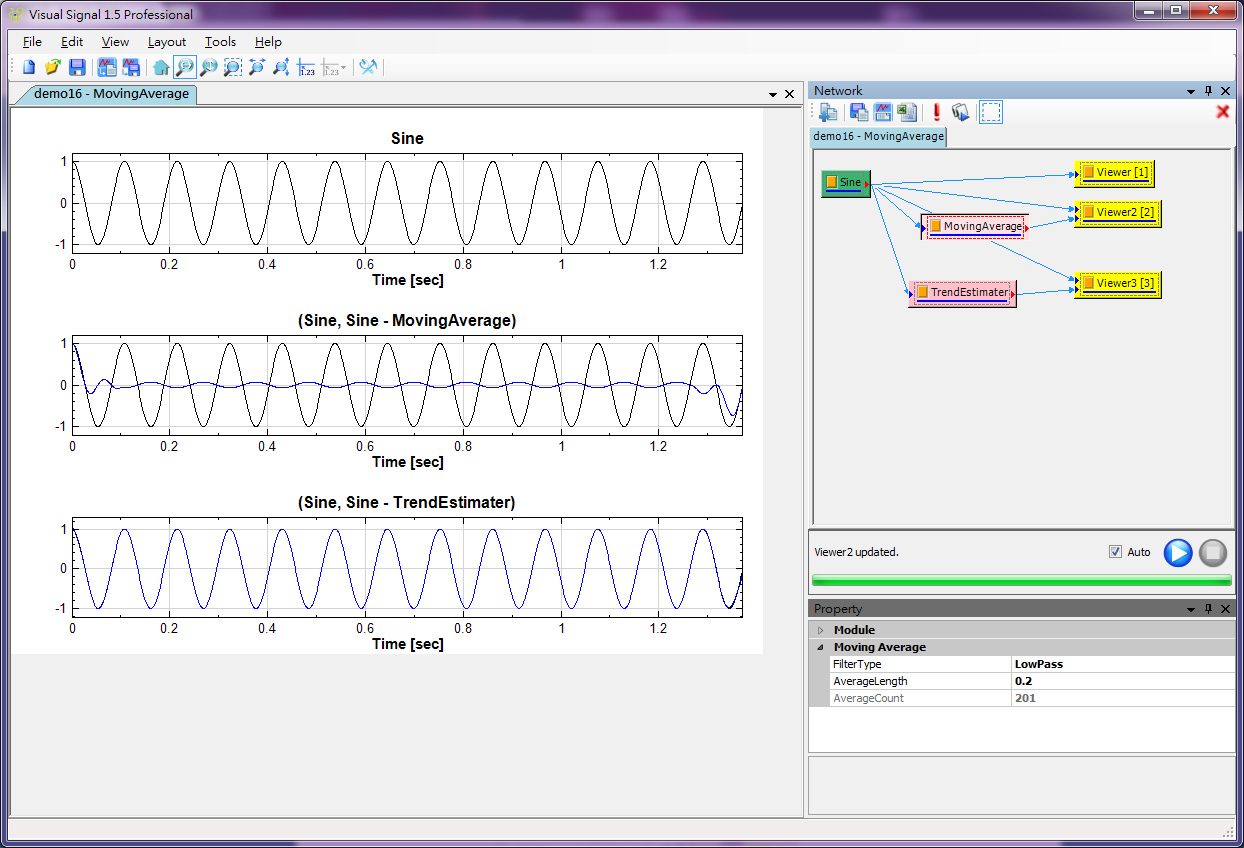

Moving Average Demo
Moving Average Filter calculates the average of signals in the range of     filtering (average length) and decreases the noise in discrete time signals     and increases the recognizable ability of a peak.


Trend Estimater Demo
Trend Estimator estimates the trend of an inputted signal.
